C2X Floor Boxes for concrete floor applications

KIT # C2XPRB
Floor box and black
coated cover w/ beveled
edges and recessed top.

Galvanized steel housing - 16 GA
Non-Painted knockouts area
Built in Tunnel
16 Knockouts
Manufactured in compliance with the
UL514A standard
Removable barriers separate circuits

The C2X floor box is sold as a kit which includes
floor box, cover and temporary construction
cover.
Please select the kit number in accordance to
the type of cover required.

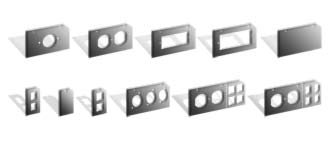

The C2X concrete floor box can be configured
with multiple FBS faceplates to accept a wide
variety of power, data and audio-video
connectors as well as the Fit-IN modular system
which optimizes the floor box capacity. The low
profile floor boxes (3 5/16 In.) provide a great
solution for most concrete floors applications.

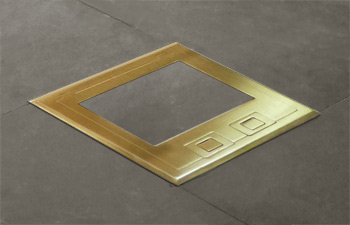

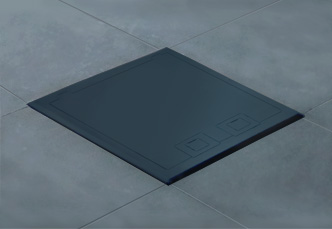

The floor box covers are
available in brass, stainless
steel and black coated steel
with several options such as

beveled edges, straight flush edges, recessed
top surface or flat.
The recessed cover provides a 7/16” (12 mm)
recessed space for the installation of any floor

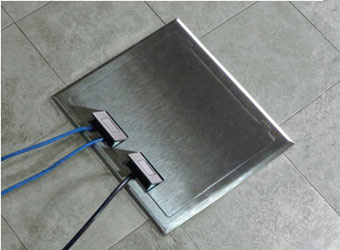

covering material. The cover also provides a
convenient retractable handle and two cable
guards to protect cables and reduce risk of
damage to all incoming and outgoing cables.
