The C12 floor box accepts two faceplates
which permit to install a wide variety of power,
communications and A/V devices. Each
faceplate covers a single gang compartment.
FBS Faceplates are painted to match the floor
box color providing an aesthetic and
professional look. For low voltage applications
use the faceplate #11612 and the FBS
decorator insert of your choice.
See Catalog page 51 for details.
which permit to install a wide variety of power,
communications and A/V devices. Each
faceplate covers a single gang compartment.
FBS Faceplates are painted to match the floor
box color providing an aesthetic and
professional look. For low voltage applications
use the faceplate #11612 and the FBS
decorator insert of your choice.
See Catalog page 51 for details.
One gang / Two gang recessed floor box
8 AM - 5 PM ET.
C1X Floor Box
The C12 two gang recessed floor box accepts a
wide variety of power, data and audio-video
connectors. It permits the installation of power
and low voltage circuits in opposite sides of the
box. The low profile - 3 1/8 In (79 mm) - provides
the perfect solution for most concrete floor
applications.
wide variety of power, data and audio-video
connectors. It permits the installation of power
and low voltage circuits in opposite sides of the
box. The low profile - 3 1/8 In (79 mm) - provides
the perfect solution for most concrete floor
applications.

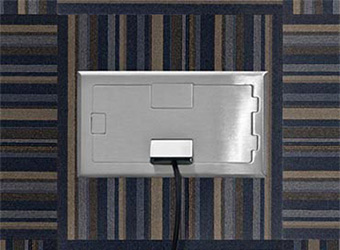

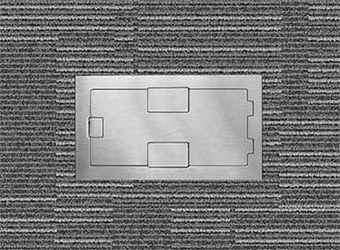

The stainless steel cover features include a
beveled trim - that hides the edges of any hard
surface flooring and prevents the carpet from
fraying when installed on carpet covered floors
and two cable guards that protect and reduce
risk of damage to all incoming and outgoing
cables.
beveled trim - that hides the edges of any hard
surface flooring and prevents the carpet from
fraying when installed on carpet covered floors
and two cable guards that protect and reduce
risk of damage to all incoming and outgoing
cables.
Floor box suitable for installation in concrete
floors interior dry locations only where the
accumulation of scrub water is unlikely to occur.
floors interior dry locations only where the
accumulation of scrub water is unlikely to occur.
Supporting documents.
Floor Box
Galvanized steel housing
Aesthetic (Painted)
Two gang
Manuf. in compliance w/ UL514A.
Aesthetic (Painted)
Two gang
Manuf. in compliance w/ UL514A.
L:8 1/4” x W:4 7/16” x H:3 1/8"
Floor Box Cover
Handles
Material - Stainless steel
Subtle beveled flange
Cable guards with rubber foam
Faceplates
|
Ordering information
The C12 floor box and cover are sold as a kit.
Select the kit number in accordance to the floor
box cover that best suits your requirements.
Faceplates sold separately.
Select the kit number in accordance to the floor
box cover that best suits your requirements.
Faceplates sold separately.
