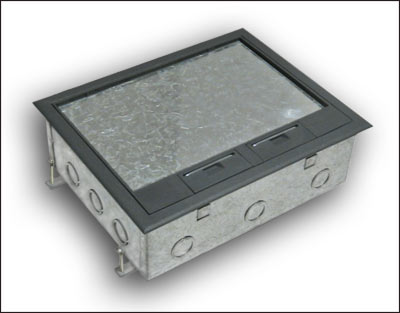

The PMC50 Floor Box is the
ideal solution for most
concrete floor applications
that require power and low
voltage connections in a mid
size floor box.
ideal solution for most
concrete floor applications
that require power and low
voltage connections in a mid
size floor box.
The lid can be rotated
with no tools for easy
outgoing cables
orientation. Two cable
guards protect cables.
A recessed space
(7/16 In.) allows to
insert a piece of floor
covering material
providing a smooth,
seamless look.
with no tools for easy
outgoing cables
orientation. Two cable
guards protect cables.
A recessed space
(7/16 In.) allows to
insert a piece of floor
covering material
providing a smooth,
seamless look.

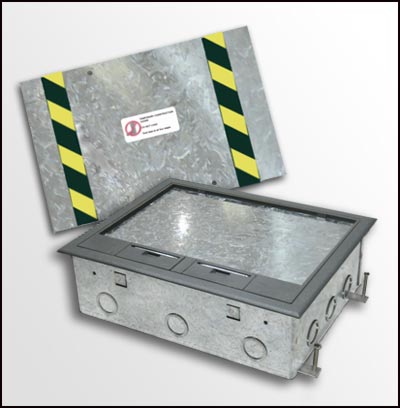

Concrete floor box
provided with temporary
construction cover.
provided with temporary
construction cover.
Adjustable after installation.
Locking Screws - Quick installation.
Meets UL94 flammability
Low profile beveled flange
Subtle flange - Hide edges of hard surface
flooring and prevents the carpet from fraying.
Locking Screws - Quick installation.
Meets UL94 flammability
Low profile beveled flange
Subtle flange - Hide edges of hard surface
flooring and prevents the carpet from fraying.
Floor box cover
Removable and reversible lid
Recessed top for floor covering insert.
Steel reinforcement plate - 11 GA.
Cable guards with rubber foam
Recessed top for floor covering insert.
Steel reinforcement plate - 11 GA.
Cable guards with rubber foam
Floor box features
Replace X for: Black= B Gray=G Almond= A
The concrete floor box
accepts a wide variety of
power, data and A/V
connectors such as duplex
receptacles, decorator
style inserts, keystone
style jacks as well as our
exclusive FIT-IN system,
which accepts up to 12
FBS modules in one box.
accepts a wide variety of
power, data and A/V
connectors such as duplex
receptacles, decorator
style inserts, keystone
style jacks as well as our
exclusive FIT-IN system,
which accepts up to 12
FBS modules in one box.
Galvanized steel housing - 16 GA
Locking tabs at all four corners.
12 Concentric Knockout's
Low profile box (3 5/16'' depth)
Old work or "New work" versions
Locking tabs at all four corners.
12 Concentric Knockout's
Low profile box (3 5/16'' depth)
Old work or "New work" versions
| Copyright © 2016 FBS Floor Box Systems - All rights reserved |
PMC50 Concrete Floor Box
Supporting documents.
| |||||||||||||||||||||||||||||
Floor box w/
levelling feet
levelling feet
Floor box without
levelling feet
levelling feet
Faceplates and connectivity options
Please tap on the image below for complete
details. A new tab will open to display the
information.
