Faceplates for the C34 Floor Boxes
Ordering information
Four gang floor outlet box
Covers are available in brass and stainless
steel providing a perfect look to virtually match
any decor style. Two cable guards protect
cables and reduce risk of damage to all
incoming and outgoing cables. A recessed
space -7/16 In - allows to install the floor
covering material providing a smooth,
seamless look.
The C34 floor outlet box is suitable for use in
concrete floor interior dry location only where
the accumulation of scrub water is unlikely to
occur.
steel providing a perfect look to virtually match
any decor style. Two cable guards protect
cables and reduce risk of damage to all
incoming and outgoing cables. A recessed
space -7/16 In - allows to install the floor
covering material providing a smooth,
seamless look.
The C34 floor outlet box is suitable for use in
concrete floor interior dry location only where
the accumulation of scrub water is unlikely to
occur.
The C34 floor box is sold as a kit which
includes floor box, cover and temporary
construction cover. Select the part number in
accordance to the cover material that best
suits your project needs.
Faceplates & devices sold separately.
includes floor box, cover and temporary
construction cover. Select the part number in
accordance to the cover material that best
suits your project needs.
Faceplates & devices sold separately.
8 AM - 5 PM ET.
C34 Concrete Floor Outlet Box
The C34 four gang floor box accepts a wide
variety of power, data and audio/video
connectors. The shallow design and the
removable levelling feet provide the perfect
solution for low profile concrete floors on new
and retrofit applications.
variety of power, data and audio/video
connectors. The shallow design and the
removable levelling feet provide the perfect
solution for low profile concrete floors on new
and retrofit applications.
Supporting documents.

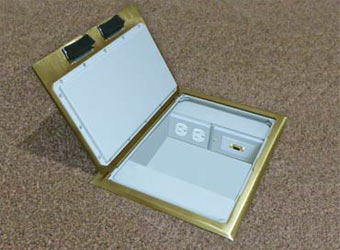

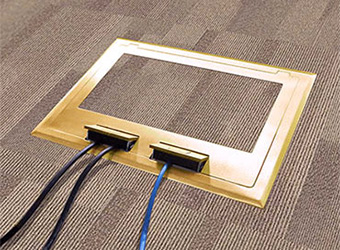

# C34BRB
Floor box w/ beveled
edges and recessed
top brass cover.
Floor box w/ beveled
edges and recessed
top brass cover.

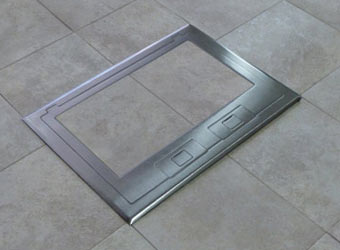

# C34SRB
Floor box w/beveled
edges and recessed
S steel cover.
Floor box w/beveled
edges and recessed
S steel cover.
Recessed surface
Floor Box Cover
Handles
Floor Box
Material - Stainless steel & Brass.
Subtle beveled flange
Cable guards with rubber foam
L:12 5/8” x W:8 5/8” x H:3 5/16”
Galvanized steel housing
Aesthetic
Four gang w/ tunnels and barriers
Manuf. in compliance w/ UL514A.
Multiple Knockouts
Aesthetic
Four gang w/ tunnels and barriers
Manuf. in compliance w/ UL514A.
Multiple Knockouts
Each compartment is isolated with its own
removable barrier (supplied).
removable barrier (supplied).
The C34 electrical floor box accepts four
single gang wallplates for power, data and
audio-video applications.
single gang wallplates for power, data and
audio-video applications.
|
|
