Please select the part number in accordance to
the # of gang and cover material required.
Part numbers are for the kit (floor box & cover).
Wallplates and devices sold separately.
the # of gang and cover material required.
Part numbers are for the kit (floor box & cover).
Wallplates and devices sold separately.
Ordering information
Faceplates
Audio-video floor
boxes
boxes
The C4X box is the largest FBS concrete floor
box, configurable to accept six, seven or eight
gang faceplates, provides the perfect solution
for any project size.
box, configurable to accept six, seven or eight
gang faceplates, provides the perfect solution
for any project size.
The C4X floor box can be configured to offer
six, seven or eight gangs of capacity.
How to select the wallplates?
six, seven or eight gangs of capacity.
How to select the wallplates?
Supporting documents.
# C4XBRB

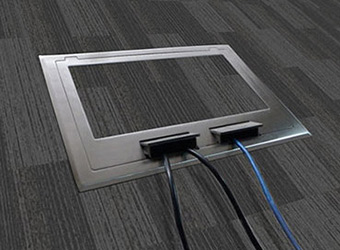

# C4XSRB
Recessed surface
Floor Box Cover
Handles
Floor Box
Galvanized steel housing
Aesthetic
Large capacity
Manuf. in compliance w/ UL514A.
Multiple Knockouts
Aesthetic
Large capacity
Manuf. in compliance w/ UL514A.
Multiple Knockouts
Material - Stainless steel & Brass.
Subtle beveled flange
Cable guards with rubber foam
C4X floor boxes are suitable for use in concrete
floors interior dry locations, where the
accumulation of scrub water is unlikely to occur.
floors interior dry locations, where the
accumulation of scrub water is unlikely to occur.

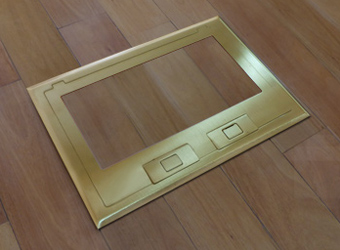

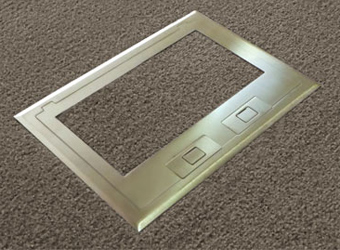

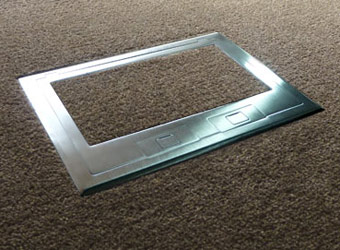

The floor box cover are available in solid brass
and stainless steel, both provided with a
recessed space for the floor covering material.
and stainless steel, both provided with a
recessed space for the floor covering material.
Made of 16 Ga. galvanized steel, the powder
coating adds extra protection and a pleasant
aesthetic look.
coating adds extra protection and a pleasant
aesthetic look.
C4X Concrete Floor Box
| Copyright © 2016 FBS Floor Box Systems - All rights reserved |
8 AM - 5 PM ET.
L:12 5/8” x W:8 5/8” x H:5”
|
6 GANG BOX: (1) Two gang + (1) one gang
wallplate per side.
7 GANG BOX: (1) Two gang + (1) one gang
and (1) four gang in the other side.
8 GANG BOX: (1) four gang per side.
wallplate per side.
7 GANG BOX: (1) Two gang + (1) one gang
and (1) four gang in the other side.
8 GANG BOX: (1) four gang per side.
|
