Ordering information
One gang / Two gang floor box
The R12 two gang floor box accepts a wide
variety of power, data and A/V connectors such
as 15A / 20A duplex receptacles, RJ45, HDMI,
VGA, and most keystone style jacks.
variety of power, data and A/V connectors such
as 15A / 20A duplex receptacles, RJ45, HDMI,
VGA, and most keystone style jacks.
8 AM - 5 PM ET.

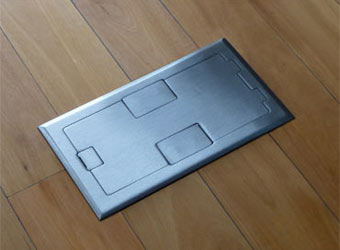

R1X Floor Box
The low profile box - 3 1/8” (79 mm) - provides
the perfect solution for low profile wood
structured floors and raised access floors.
The stainless steel solid cover has a beveled
trim that hides the edges of any hard surface
flooring and prevents the carpet from fraying
when it is installed on carpet covered

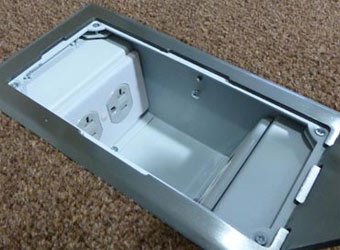

floors. Two cable guards remain open when in
use to protect cables and reduce risk of
damage to all incoming and outgoing cables.
the perfect solution for low profile wood
structured floors and raised access floors.
The stainless steel solid cover has a beveled
trim that hides the edges of any hard surface
flooring and prevents the carpet from fraying
when it is installed on carpet covered
floors. Two cable guards remain open when in
use to protect cables and reduce risk of
damage to all incoming and outgoing cables.
Supporting documents.
Floor Box
Galvanized steel housing

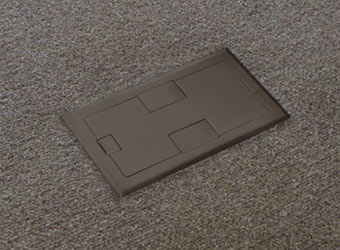

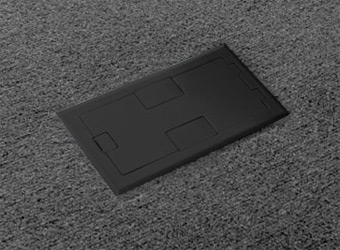

Aesthetic (Painted)
Two gang
UL Listed
Aesthetic (Painted)
Two gang
UL Listed
L:8 1/4” x W:4 7/16” x H:3 1/8"
Floor Box Cover
Handles
Material - Stainless steel, Brass or steel
Subtle beveled flange
Cable guards with rubber foam
Faceplates
|
|
The R12 floor box accepts two faceplates
which permit to install a wide variety of power,
communications and A/Vdevices. Each
faceplate covers a single gang compartment.
FBS Faceplates are painted to match the floor
box color providing an aesthetic and
professional look. For low voltage applications
use the faceplate #11612 and the FBS
decorator insert of your choice.See catalog
page 51 for details.
which permit to install a wide variety of power,
communications and A/Vdevices. Each
faceplate covers a single gang compartment.
FBS Faceplates are painted to match the floor
box color providing an aesthetic and
professional look. For low voltage applications
use the faceplate #11612 and the FBS
decorator insert of your choice.See catalog
page 51 for details.
The R12 floor box and cover are sold as a kit.
Select the kit number in accordance to the floor
box cover that best suits your requirements.
Faceplates sold separately.
Select the kit number in accordance to the floor
box cover that best suits your requirements.
Faceplates sold separately.
