1/4 Part number: 13623
Two "standard" keystone ports.
1/4 Part number: 13634
Two Systimax jacks (M Series).
Requires Systimax mounting collar.
1/4 Part number: 13603
Blank. Cover unused openings
3/4 Part number: 13601
Standard duplex receptacle.
3/4 Part number: 13612
Decorative (GFCI) style
3/4 Part number: 1304
Single AC outlet
(SSR 1 3/8" Dia.)
3/4 Part number: 13606
Discontinued
3/4 Part number: 14606
Three XLR or 1/4" jacks.
3/4 Part number: 13600
Blank.
4/4 Part number: 44644
(1) Duplex + (4) Systimax -
M Series - (Req. Systimax
collar) -Includes barrier
4/4 Part number: 44633
(1)Duplex+(4) keystone
Includes barrier
4/4 Part number: 44607
Fit-IN System
Accepts six modules
The Fit-IN modular
system allows the user
to place up to 12
modular inserts inside
the PMC floor boxes.
Now, you can place all
services in just one box.
Use the keystone style
module Part # FBS64
or FBS65 for RJ and
most of the keystone
style connectors.
For VGA connections
use part #FBS67.
Ask for details.
Fit-IN System

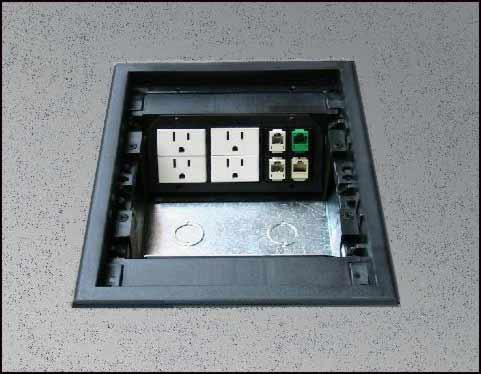

Faceplates for PMC & WFB Floor boxes
Faceplates are available in three different dimensions identified as (1/4) "One quarter", (3/4) "Three quarters" and (4/4) "Four quarters" types.
|
Each side of the box is filled with (4/4) "Four quarters" (1/4 + 3/4).
|
Select the appropriated faceplates to complete 4/4 "Four quarters". (One (1/4) + One (3/4))
|
Fit-IN
|
Description
|
|
Part # 44607 Fit-In yoke Accepts 6 FBS modules
|
|
|
Part # FBS61 15A Receptacle
|
|
|
Part # FBS62 Bezel for (2) Systimax M series RJ jacks
|
|
|
Part # FBS63 Bezel for (1) Systimax M series RJ jack
|
|
|
Part # FBS64 Bezel for (1) keystone style jack
|
|
|
Part # FBS65 Bezel for (2) keystone style jacks
|
|
|
|
|
Part # FBS67 Bezel for (2) Panduit Minicom jacks
|
|
|
