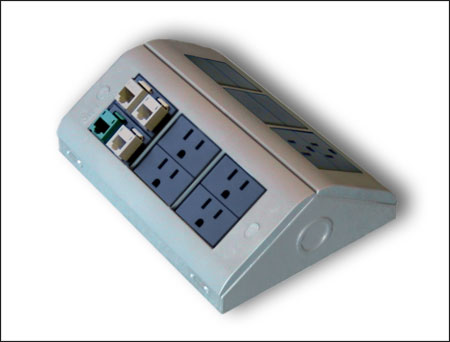

Multi-Snap   Surface mount floor box
The new Multi-Snap (Part # PF10266) is a smart option when a surface mount floor box
is required. The innovative and aesthetic design provides the perfect look for all decor
styles.
    This surface mount box is made of galvanized steel, suitable for installations in floors,
    is the ideal solution for commercial offices, schools, data centers and locations where
    an easy accessible service is required.
FBS Floor Boxes
Surface mount floor box
Features
Galvanized steel housing

Barriers separate circuits

Ground screw

Faceplate/Yoke - UL 94 V0 material

15A Receptacles - UL Listed

Configurable (AC, Data, A/V)

5 years warranty
Easy to handle, easy to install

Snap-ln style Modules

Supports future changes

High Capacity: Up to 12 receptacles

Accepts standard keystone style jacks

Accepts Panduit Mini-Com jacks

Accepts Systimax M Series jacks
FBS Floor Box Systems
Raised Floor Box
Wood Floor Box
Concrete Floor Boxes
Faceplates for Floor Boxes
Box for tables, desks & walls
Surface mount Floor Box
Power Poles
Raceways
Junction Boxes
FBS Underfloor ducts
Connectivity Options
Fit-IN Modular System. Exclusive from FBS.
Part numbers 62 and 64 accept RJ45 Cat 5 or higher only.
Part numbers 62, 63 and 67 provide flush finish between the jacks and the module.
Policies - Liability & Trademarks - Terms & Conditions of Use
Copyright © 2007 FBS Floor Box Systems - All rights reserved
TM
    The snap-on modular system allows to populate the box with 12 modules of your
    choice.

    Choices include: UL Listed Power outlets, blank modules, single or double ports
    for standard keystone style jacks as well as  modular inserts for "non-standard"
    jacks such as Panduit, Systimax (M Series) and VGA connectors.

    Use the keystone style port module Part number 64 for USB, RCA, S-Video, F style
    connectors, ST & SC fiber optic connectors, 3.5 mm mic. and most of the standard
    keystone style connectors.

    For VGA use part number 67. Ask for details.
The Multi-Snap service fitting
can be applied to an underfloor
duct, floor  box, outlet box and
most surfaces.
The Multi-Snap box  (Part # PF10222) is a single compartment box that accepts 4
modules of your choice for Power or low voltage applications.
Part Number: PF10266 (12 Modules) - Stock: Yes

Lead Time: 1 Day
Same Day Shipping: Yes - Call to confirm.
Part Number PF10266: $Call
Part Number FBS133: $12
Modules: Call

Please call us at 1-800-216-8307 for immediate quotes and quantity discounts.
Download cutsheets - Includes connectivity options

Click here to Download - PF10266

PDF File - Requires Acrobat Reader

Click here to Download - PF10266 Instructions

PDF File - Requires Acrobat Reader -
Part #
Length
Width
Height
PF10222
5  11/16
2 15/16
2 5/8
Part #
Length
Width
Height
PF10266
7 3/8
5 5/8
2 5/8
Part Number: PF10222 (4 Modules) - Stock: Yes

Lead Time: 1 Day
Same Day Shipping: Yes - Call to confirm.
Part Number PF10222: $Call

Modules: Call

Please call us at 1-800-216-8307 for immediate quotes and quantity discounts.
Download cutsheets - Includes connectivity options


Click here to Download - PF10222
PDF File - Requires Acrobat Reader

Click here to Download - PF10222 Instructions
PDF File - Requires Acrobat Reader -
The connectors available for low voltage applications are RJ45, RJ11, USB, Coaxial,
HDMI, VGA, RCA, and 3.5 mm audio jacks.
The PF10222 surface mount
box accepts up to four 15A
receptacles, equal to two
duplex receptacles.
