The R4X floor box offers the largest capacity, configurable
to accept six, seven or eight gang faceplates provides the
perfect  solution for any project. The R4X floor box is
suitable for installation in wood structured floors, stages
and raised access floors.

Supplied with  removable barriers which  permit access to
adjacent compartments when it is required  and 1"
Knockouts facilitate the wiring related jobs.

The floor box covers are available in brass and stainless
steel, both with provision of a recessed space for the floor
covering material. The recessed space is 7/16”  (12 mm)
deep to accept  the installation of carpet, terrazzo, tile etc.
The floor box cover also features two cable guards that
protect and reduce risk of damage to all incoming and
outgoing cables. An unobstrusive handle facilitate access
to box services allowing the user to retract it when not in
use.

Plase see "Ordering instructions" for part numbers.
Six, seven and eight gang floor box
Please select the part number in accordance to the numbers of gang and cover material required.
Part numbers shown are for the kit (Includes box and cover). Wallplates sold separately.
Ordering information
Features
Covers for R4X floor box
Wallplates sold separately.
Barriers available to separate compartments. (part # BDPC4)
For VGA, RJ's jacks, XLR's and most audio-video jacks please use our
part # DECF6W.  Visit Connectivity Options for details.
The R4X floor box can be configured to offer six, seven or eight gangs of capacity.

  • The six gang configuration accepts (1) two gang wallplate and (1) one gang wallplate per side.
  • The seven gang configuration accepts (1) two gang and (1) one gang wallplate on the first side and (1) four gang wallplate in the
    other side.
  • The eight gang configuration accepts  (1)  four gang wallplate per side.
Installation Instructions
Catalog sheets
Supporting documents.
Faceplates for R4X Floor Box
Stainless steel cover w/recess and beveled edge
Brass cover w/recess and beveled edge

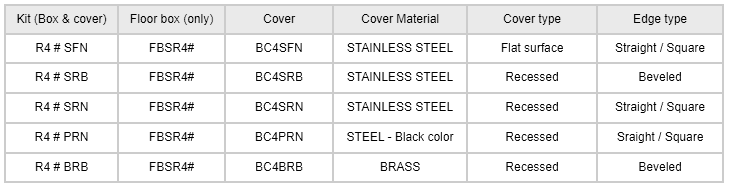

The R4X is supplied as a kit which includes the floor box and the cover. The Kit number or part number (for the kit) is assigned based
on the  number of gangs required and the cover selected for your project. See "Ordering information" below for details.
# R4XBRB
Floor box with brass cover.
Brass cover has beveled
edges and recessed top.
# R4XSRB
Floor box with stainless
steel cover.
SS cover has beveled
edges and recessed top.

R4X Floor box

3/16" (4mm)
  • Recessed surface: 7/16" recess
    for floor covering material
  • Extra protection Powder coated box
Frame - Flange -Lid
  • Handle: Two retractable handles
    facilitates the access to box services.
Floor box
  • Galvanized steel housing - 16 GA
    Powder coated galvanized steel housing
    Provides added strength and reliability

  • The painted interior offers a professional
    and highly aesthetic look.

  • High capacity floor box offers 6, 7 and 8
    gangs of capacity
  • Material - Stainless steel and Brass-
    Brushed  finish
  • Subtle beveled flange hide edges of
    hard surface flooring and prevents the
    carpet from fraying.
  • Cable guards with rubber foam
      Can be tilted when in use or closed
      when  not used.
  • 16 Knockouts  for 1" conduits.
  • Non-Painted knockouts area assures
proper bonding and facilitates the
installation process.
  • Locking clips - Quick and secure
    installation to different floor thicknesses
  • Manufactured in compliance with
    UL514A Standard
  • Easy to install. Suitable for stages,
    wood floos and raised floors.
Two gang
Decor style
UL Listed
